Write your code

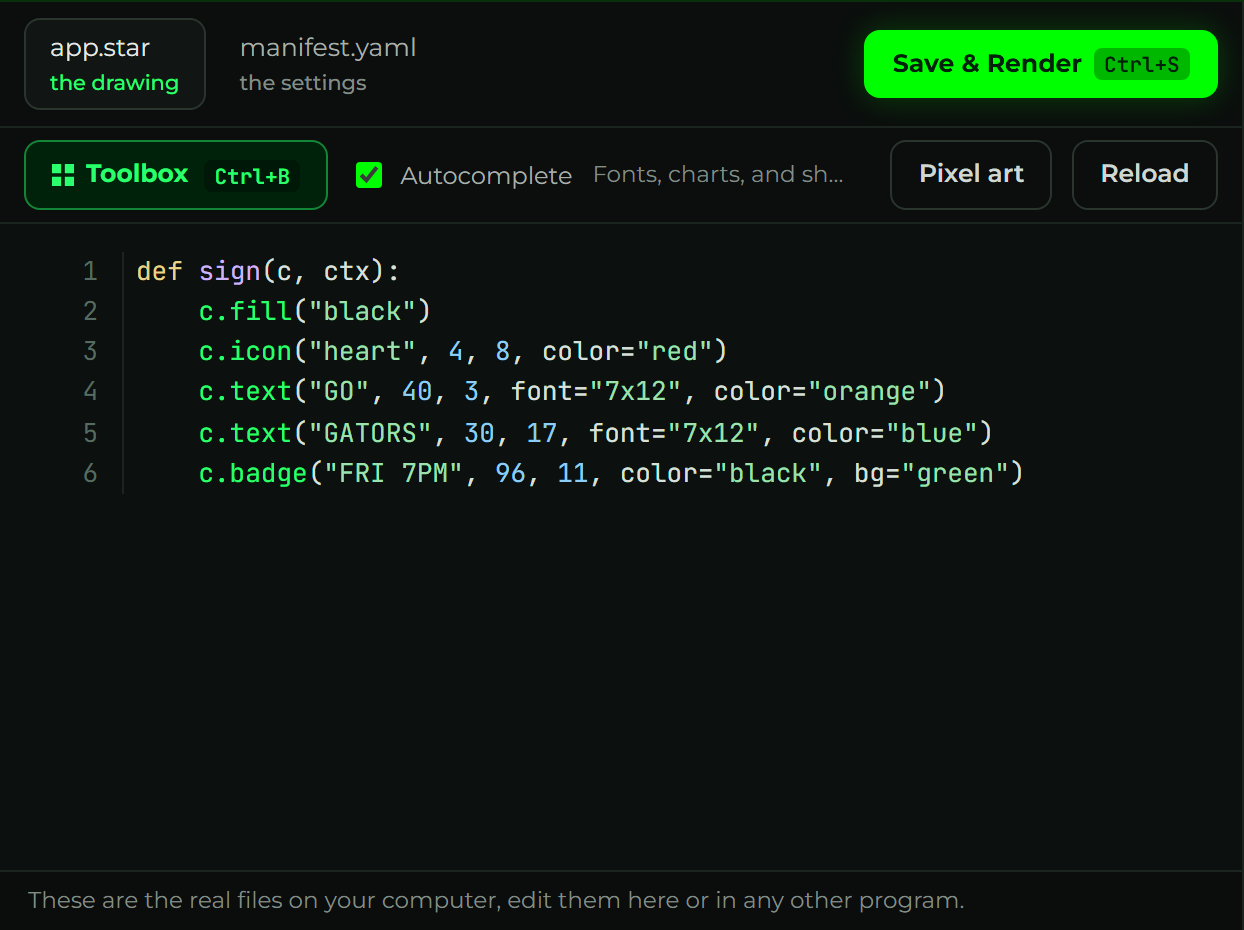

The left half of Studio is where you edit your app. It's a code editor with color highlighting, strings, comments, and drawing calls are colored so the code is easy to read, and two tabs, one for each of your app's files.

The Studio editor with syntax highlighting: two file tabs, the Toolbox and Save & Render buttons, and colored code

The two tabs​

  • app.star, the drawing. The code that draws your panel. This is where you spend most of your time.
  • manifest.yaml, the settings. Your app's name, size, how often it refreshes, and the inputs people fill in.

Click a tab to switch between them. For what goes in each file, see App fundamentals.

Add code without typing it​

Don't want to write from memory? Click Toolbox (or press Ctrl + B) above the editor to browse every font and drawing helper with a live preview, and drop the code in with a click, comments and all. See Toolbox.

Suggestions as you type​

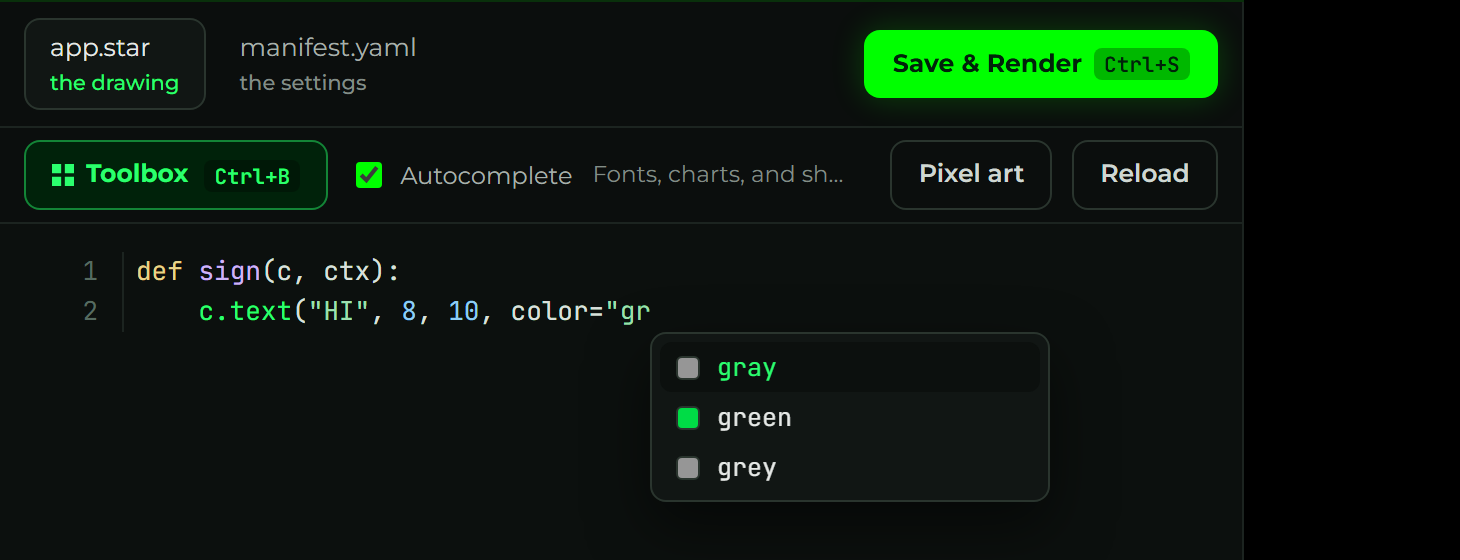

Turn on Autocomplete (the checkbox next to the Toolbox) and Studio suggests as you go: c. lists the drawing helpers, font=" lists the fonts, color=" lists the named colors with a swatch, and ctx.inputs.get(" lists your app's own settings. Use the arrow keys and Tab or Enter to accept, Esc to dismiss. Uncheck it any time.

Typing a color argument shows an autocomplete list of gray, green, and grey, each with a color swatch

Draw pixel art​

Click Pixel art above the editor to open a grid painter. Paint with a color palette and Studio writes the drawing code into app.star for you, a c.bitmap(...) for one color or a c.sprite(...) for several. Put your cursor on an existing one and click Pixel art again to edit it. It's saved as code, so it travels with your app, with no separate file. More in Working with images.

Mistakes are underlined​

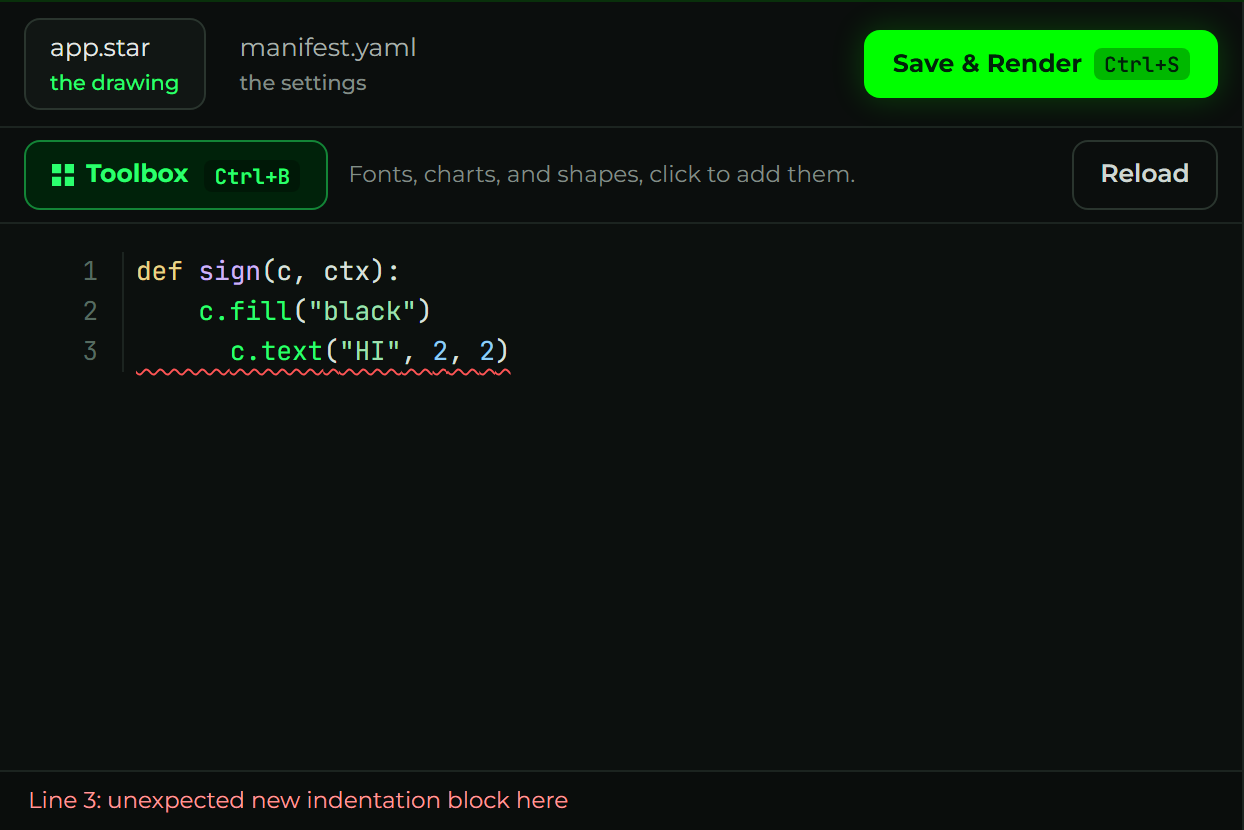

If a line has a syntax mistake, like the wrong indentation, Studio underlines it in red and explains it at the bottom of the editor, before you even render:

A red wavy underline under a wrongly-indented line, with the message 'Line 3: unexpected new indentation block here'

Fix the line and the underline clears itself. (Starlark, the language app.star is written in, cares about indentation, so line things up under the def.)

Save & Render​

When you've made a change, click Save & Render (or press Ctrl+S / Cmd+S). Studio saves the file and updates the live panel on the right at the same time, so you see the result immediately.

Reload throws away unsaved edits and re-reads the files from disk, handy if you also edited them somewhere else.

These are your real files

Studio edits the actual files in your apps/<name>/ folder. You can flip between Studio and any other editor (like VS Code) whenever you want, they're always in sync.
