Glance Dev Studio

Glance Dev Studio

Glance Dev Studio is a single place to build a Glance app. It runs on your own computer, opens in your web browser, and puts everything in one place: make a new app, edit it, watch the LED panel update live, fill in the settings, and check that it's ready, all on one screen. After you launch it, you never have to touch the terminal again.

Opening Glance Dev Studio​

Studio opens in your web browser at http://localhost:8766. There are two ways to start it. Pick whichever is easier for you.

Shortcut To Opening the Glance Dev Studio​

In the project folder (the one you cloned, the one with an apps/ folder in it) there's a launcher for your system. Double-click it and your browser opens Studio, no terminal and no commands to remember:

  • Windows: studio.bat
  • macOS: studio.command
  • Linux: studio.sh (or run ./studio.sh in a terminal, since some Linux file managers won't run a script on a double-click)

A small window opens and your browser loads Studio. When you're done, close that window to stop Studio.

First time on macOS

The first time, macOS may block the file because it came from the internet. Right-click studio.command, choose Open, then Open again. After that a normal double-click works.

Opening Glance Dev Studio from the Terminal​

From the project folder, run:

gdn studio

Your browser opens to the editor and a live preview, with a menu at the top to pick any of your apps. You don't need to name an app. To jump straight to one, add its folder:

gdn studio apps/world-clock
Run it from the project folder

Open your terminal in the folder you cloned, the one that contains apps/, not inside the gdn folder. If you ever see an error mentioning an "attempted relative import", it just means an old python studio.py was typed by hand. Use gdn studio or the double-click launcher instead and it will work.

Don't have an app yet? Either way still opens Studio, just click Create New App (next page) to start a fresh one.

The whole screen, labeled​

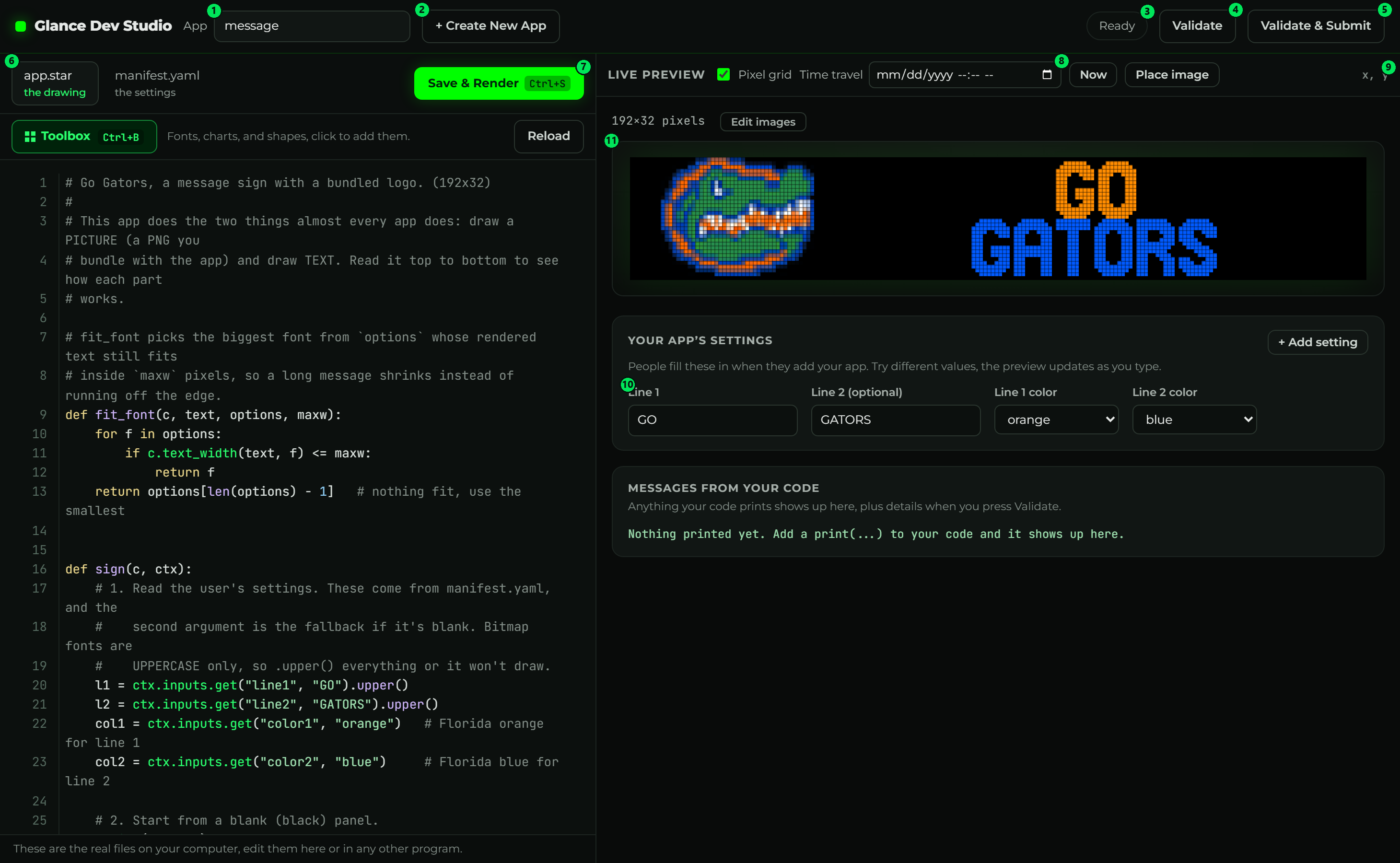

The Glance Dev Studio window with eleven numbered callouts
  1. Switch apps. Pick any app in your apps/ folder from this menu.
  2. Create New App. Start a brand-new app from a working example.
  3. Status. Says Ready, or turns green/red when you check your app.
  4. Validate. Checks that your app works and is ready to share.
  5. Validate & Submit. Checks it, then opens a pull request to publish it (see Check & publish).
  6. The two files. Tabs for app.star (the drawing) and manifest.yaml (the settings).
  7. Save & Render. Save your changes and update the preview (or press Ctrl/Cmd+S).
  8. Time travel. Set any date and time to test how your app looks then.
  9. Pointer position. Hover the panel to read the exact pixel your mouse is on.
  10. Your app's settings. The inputs people fill in; the preview updates as you type.
  11. Live panel. Exactly what your LED sign will show, every page, pixel for pixel.

The pages in this guide​

  • Create a new app: the New App button, and what to do if a file is missing.
  • Write your code: the two files, and Save & Render.
  • Toolbox: browse fonts and drawing helpers with live previews, click to drop the code in.
  • See it live: the panel, the settings, and time travel.
  • Check it and publish: Validate, the message console, and Validate & Submit.
Building with an AI

Studio works well with an assistant. See Build with AI: have the AI write the app, then open it here to see it live and tweak it.
