Your first app

You'll build a "Game Night" sign end to end, a pawn image plus two words, entirely in Glance Dev Studio: create the app, edit its code, drag the image into place, and check that it works. No terminal required (there's a command-line version at the bottom if you prefer it).

What you're building. This is the real GDN render, a 128×32 pixel panel shown enlarged.

1. Create the app

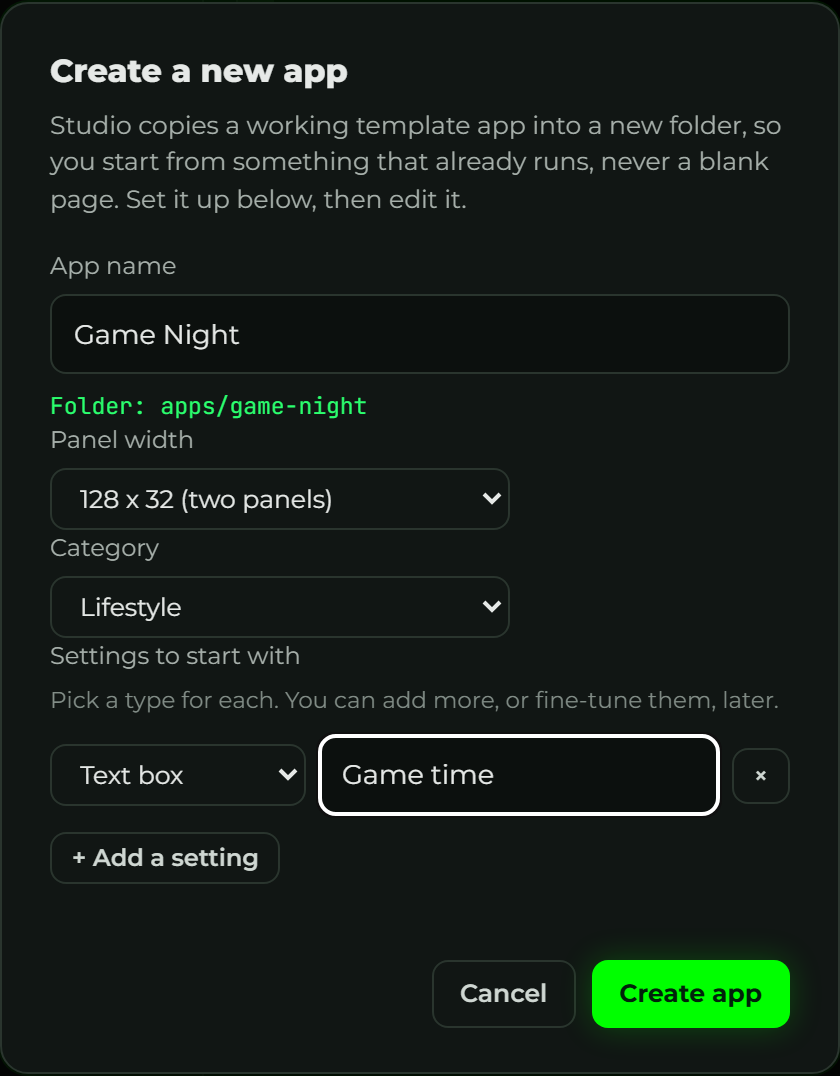

Open Glance Dev Studio and click + Create New App. Give it the name Game Night, set the panel width to 128 x 32, pick a category, and add one setting, a Game time text box (you'll use it in a moment). Click Create app:

Studio makes the folder apps/game-night/ with two working starter files, so you never stare at a blank page. It opens the new app right away, ready to edit.

2. Draw the text

The left side is app.star, the code that draws the screen. It comes with a small starter. Select all of it and replace it with the two words. Leave the left side empty for now, that's where the pawn will go:

def sign(c, ctx):
    c.fill("black")
    c.text("GAME", 30, 4, font="7x12", color="green")
    c.text("NIGHT", 30, 18, font="7x12", color="white")

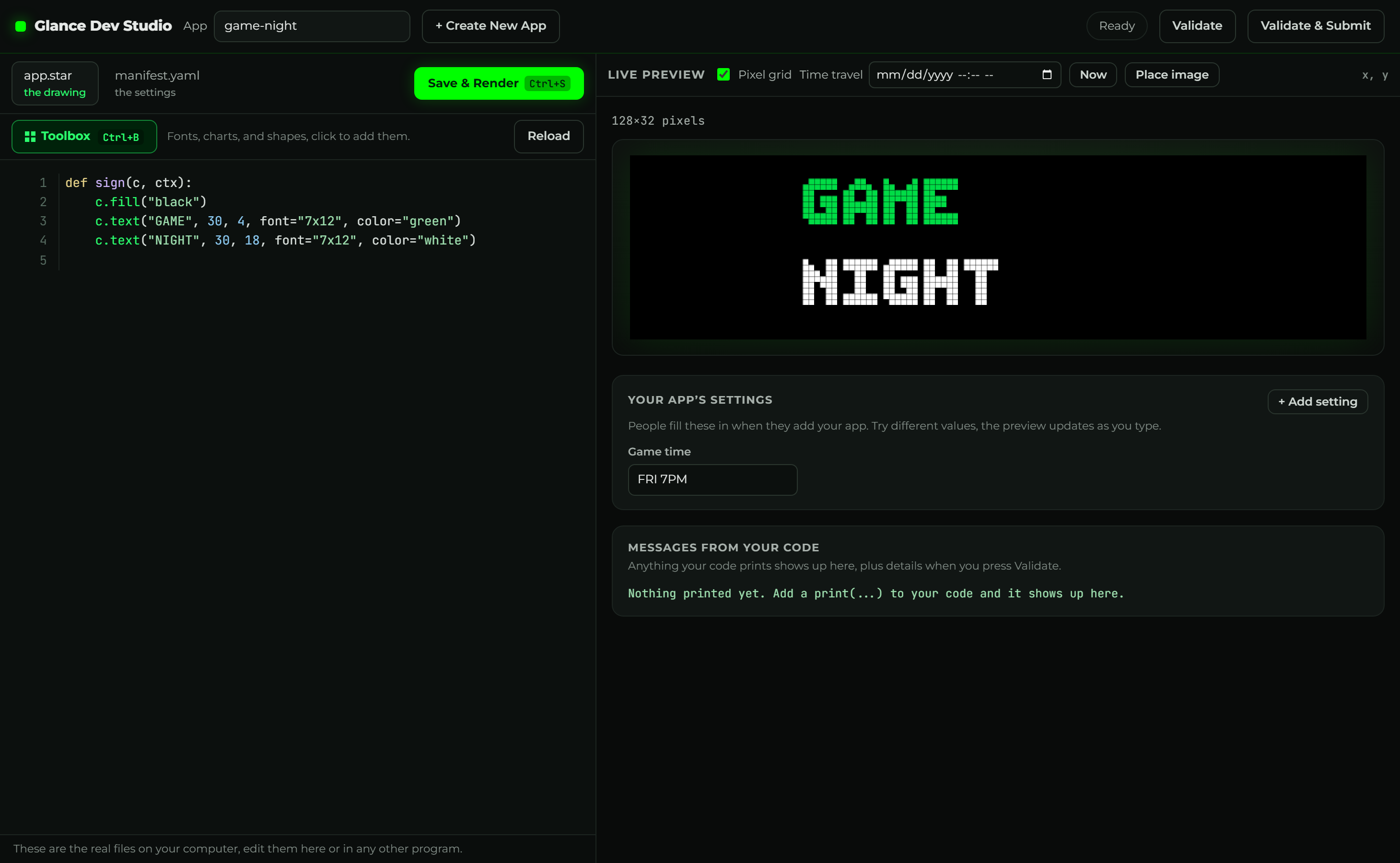

Press Save & Render (or Ctrl+S) and the live preview on the right updates instantly:

Edit on the left, watch the Glance LED update on the right.

The manifest.yaml tab says pages: [sign], so app.star defines def sign(c, ctx). That one function is the whole app.

3. Add the pawn image

An app can only draw images it declares. Save this PNG as pawn.png inside the apps/game-night/ folder, then open the manifest.yaml tab and list it under assets:.

pawn.png, a plain PNG with a transparent background. No conversion, no encoding (more in Working with images).

assets:
  - pawn.png     # every image you draw must be listed here

Now the pawn is available to the app. You'll put it on the panel in the next step.

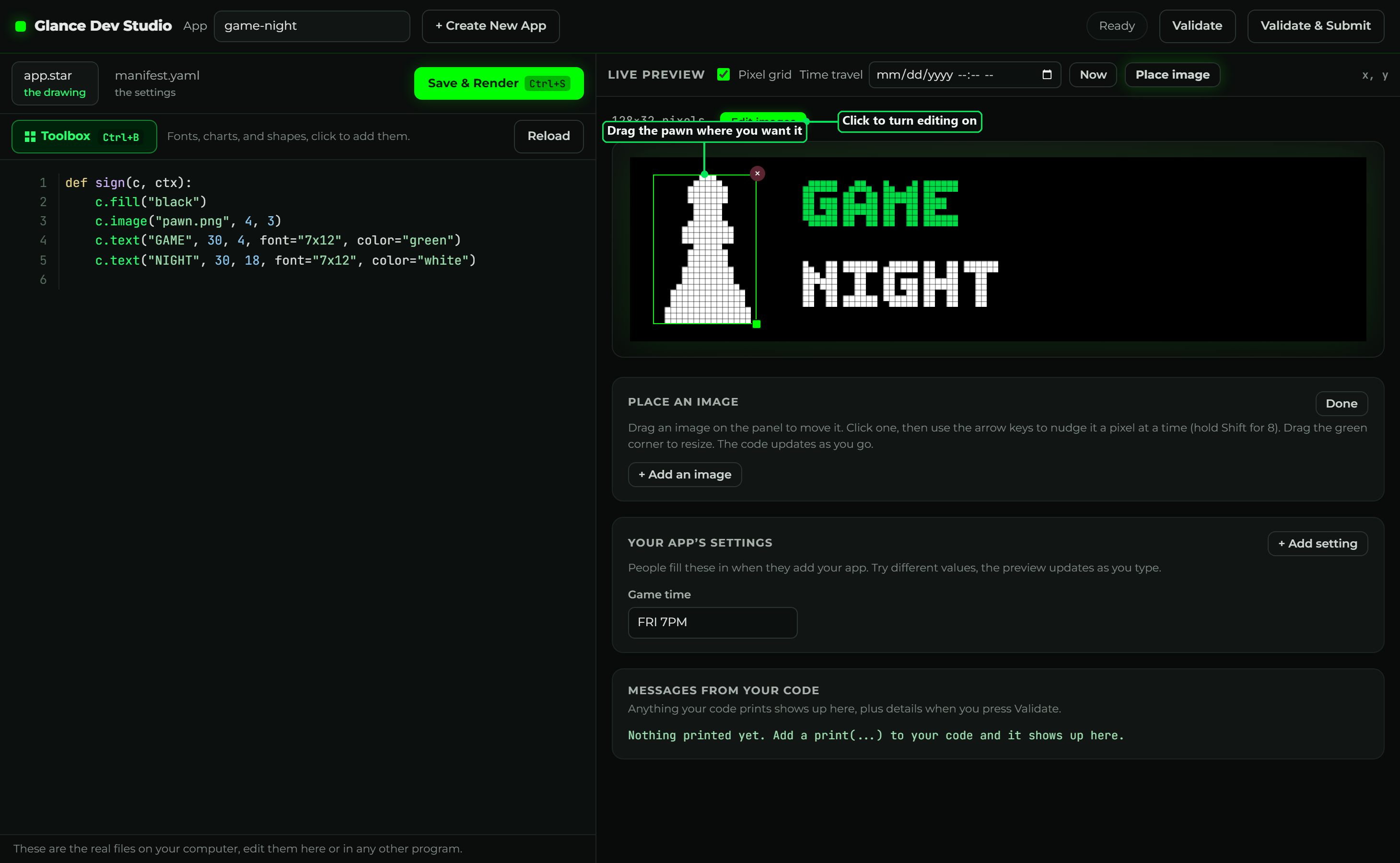

4. Place the pawn by dragging

You don't have to write the c.image(...) line or guess coordinates. Let Studio do it:

1. Click Edit images next to the panel size (it lights up green).
2. Click + Add an image and pick pawn.png. It drops onto the panel.
3. Drag it to the left of the text. Studio writes the c.image("pawn.png", x, y) line into your code as you move it.
4. Fine-tune with the arrow keys (one pixel at a time), or drag the green corner to resize.

See Working with images for the whole tool.

5. Where did everything land?

The numbers in those calls are pixel coordinates, and they all follow one rule:

• The origin (0, 0) is the top-left pixel. x grows right, y grows down.
• For images and text, (x, y) is the top-left corner of what you draw. c.image("pawn.png", 4, 3) puts the pawn's top-left corner 4 pixels from the left and 3 pixels down.
• c.text("GAME", 30, 4...) starts at x=30, to the right of the pawn, and "NIGHT" at y=18 sits below it (bigger y = lower).

One detail: the text is UPPERCASE on purpose. The bitmap fonts only contain capital letters, so lowercase characters are silently skipped.

6. Show the game time with a badge

Now use that Game time setting. Open the manifest.yaml tab and make sure the input is a text box named time with a default:

inputs:
  - key: time
    type: string
    app_input_type: free-text
    label: Game time
    default: "FRI 7PM"

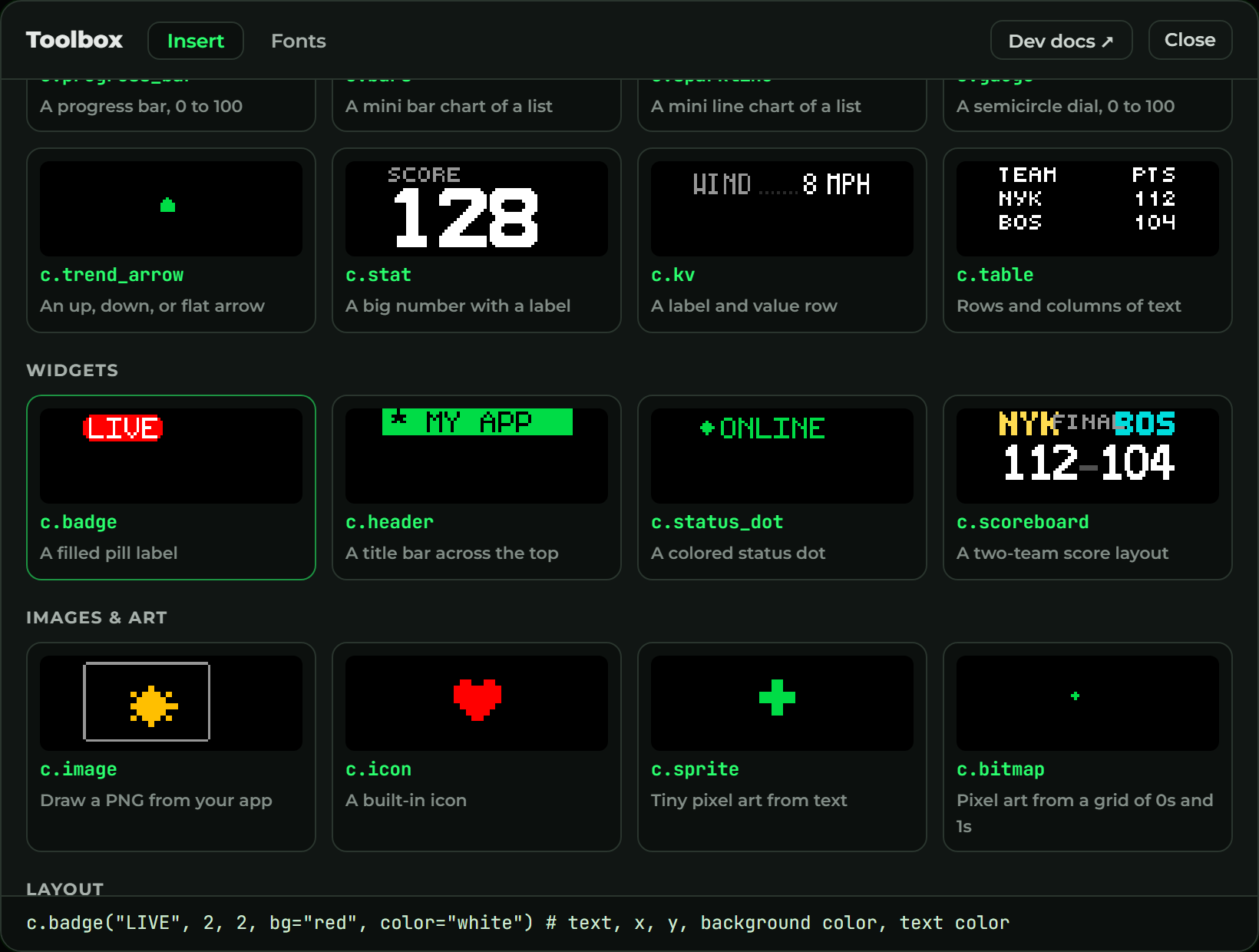

Then put it on the sign. You don't have to remember the code, use the Toolbox. Click Toolbox (or press Ctrl + B), find c.badge under Widgets, and click it:

Studio drops a c.badge(...) line into your code with a comment explaining each part. Change it to read the setting and sit to the right of the text, so your app.star reads:

def sign(c, ctx):
    c.fill("black")
    c.image("pawn.png", 4, 3)
    c.text("GAME", 30, 4, font="7x12", color="green")
    c.text("NIGHT", 30, 18, font="7x12", color="white")
    c.badge(ctx.inputs.get("time", "FRI 7PM"), 78, 11, color="black", bg="green")

ctx.inputs.get("time", "FRI 7PM") reads the Game time setting, using "FRI 7PM" if it's blank. Save & Render:

The badge shows whatever the Game time setting says.

7. Change it live

Look at the Your app's settings card under the preview, it now has a Game time box. Type a different time, like SAT 8PM, and the badge updates instantly, no code change. That setting is what people fill in when they add your app (see User input types for what they see on their phone).

8. Validate

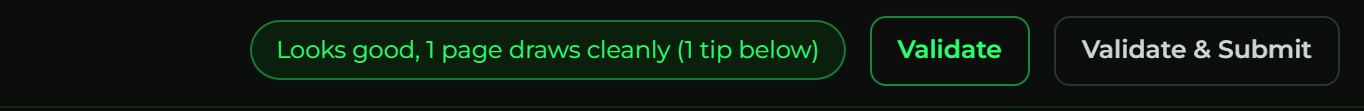

When it looks right, click Validate at the top of Studio. It renders every page and runs the same check publishing does: if you forgot to declare pawn.png, used a font that doesn't exist, or misnamed the page function, it tells you here instead of on the panel.

That's a complete app. Publishing is a pull request, see Publish an app.

The terminal way

Everything above works from the command line too, if you prefer it:

gdn new apps/game-night        # scaffold the folder and two starter files
# edit manifest.yaml and app.star in any editor, add pawn.png
gdn preview apps/game-night    # live browser preview that re-renders on save
gdn validate apps/game-night   # prints PASS game-night (1 page)

See the CLI commands guide for the full set.
